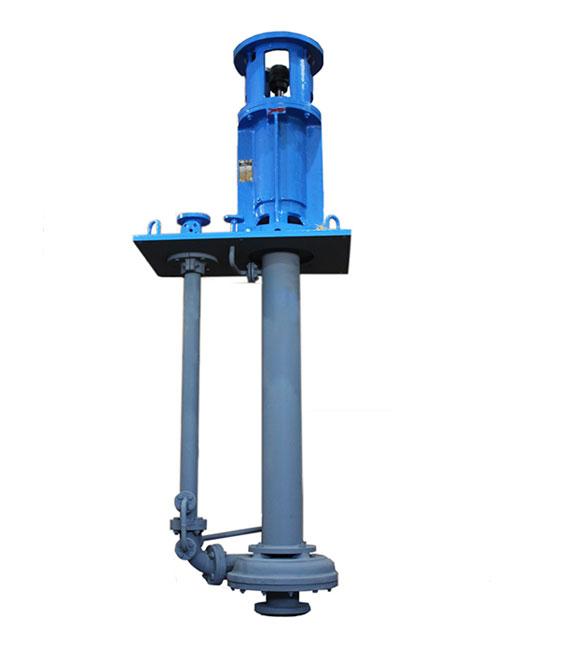

VERTICAL SUBMERGED CENTRIFUGAL PUMP - CANTILEVER DESIGN
Chemlin Centrifugal Pumps are being used in various process industries all over India & Abroad. The products are designed and manufactured to International Standards and offer all desired features and options for maintenance free operations. Chemlin brand products are serving the Chemical and Process Industry for over last three decades and are the first choice of Maintenance Engineers.
Looking for Pumping Solutions? Chemlin is here for you
Product Range
- Capacity: Up to 1000 m3/hr.
- Temperature Range: 20° C to 200° C
- Head: Up to 50 MLC
- Size: 25 mm to 100 mm
- Working Pressure: Up to 25 Kg/cm2
- Pump Setting: Up to 2.5 meters
Proud member of Indian Pump Manufactures' Association (IPMA) which is an Apex body of the well-known Pump Manufacturers in India.
Design Features
Closed Type and Semi-open Type Impeller designs are offered to handle a variety of liquids. Impeller & Casing designed for maximum Hydraulic Efficiency and minimum thrust on rotating assembly.
Unique space saving design due to Vertical mounting of Pump. Impeller Casing totally submerged in liquid so no priming or air venting required. Inside tank and outside tank mounting designs available for respective applications.
Glandless Type and/or vapour sealing type execution available. In vapour sealing design, the Gland and acid resistant asbestos packing prevents the leakage of vapours of hazardous liquids from coming out. Thus the Environment is kept free from pollution and dangers of inflammable obnoxious liquids. Jacketed stuffing box/bearing housing designs available for high temperature services.
Very rigid construction with extra wall thickness provided for corrosive applications. It is virtually maintenance free. Jacketed construction for Pump is given for handling viscous liquids like Molten Sulphur, Molten Lead etc. Discharge/Suction Flanges confirm to ASA/DIN Standards.
* In search of Excellence, We reserve our right to alter or change specifications without prior notice.
Applications
Transfer and circulation of Acids, Alkalis, Molten Sulphur, Molten Lead and other Volatile Liquids in Chemical, Fertilizer, Process and other Allied industries.
Material of Construction
Graded Cast Iron, Cast Steels, CA15, CF8M, Ni-Resist, DIN 4136, 28/2 CrMo Steel, CN7M, R-55, Duplex Stainless Steel, CD4MCuN Hastelloy grades & Special Stainless Steel Alloys.
Your benefits
- As a pump specialist with international know-how, Chemlin offers the right solution for every application.
- Exceptional pump performance even at extreme temperatures and with aggressive fluids
- Energy-efficient, cost-saving processes thanks to product longevity and robustness
- Capable of handling extremely demanding fluids thanks to purpose-built materials and seals
- Comprehensive service – whether installation, inspection, maintenance or repair on site
Our Global Reach
No geographical barriers can stop us from performing the best. Even though our customers are all over the world. The distance is no barrier when it comes to ensuring high-quality service. Our products get exported in countries like Saudi Arabia, Oman, Turkey, Thailand and Shrilanka.
Manufacturing Excellence
Company has strong roots in manufacturing and engineering and has over the years been able to develop efficient manufacturing processes. Our sophisticated capabilities in Machining, Assembly and Testing, under one roof, have evolved from our world class mother machines that provide great mileage in manufacturing, thus ensuring consistent world-class quality pumps and valves
Service support is at the heart of our business philosophy. The Company's service policy is aimed at ensuring proper and timely services to its customers across the globe. It is committed to achieving complete customer satisfaction with excellence in service quality and support. We ensure that our products are handled, installed, commissioned, maintained and repaired in time and with skilled manpower which intern ensures the trouble-free operation of pumps and a long product life. Business Associates of 'Chemlin' are placed at strategic locations in various parts of the country to give prompt service to our customers.
